Metro Safety Rail
Versatile and Simple
Serves as fall arrest system, guard rail and travel restraint system all in one.
Install 0.6m or more from slab edge.
Does not interfere with building envelope installation

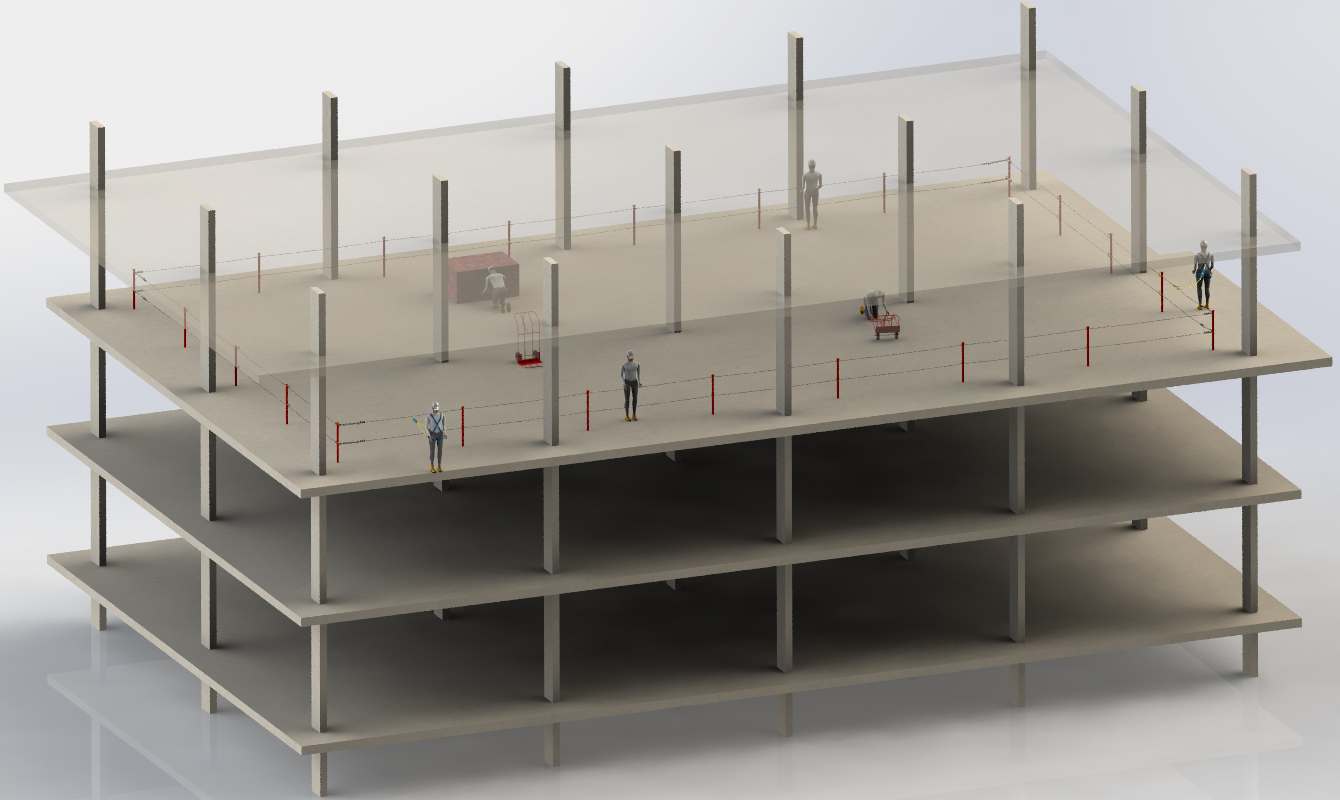

Passive Guardrail, most workers inside perimeter
Rental System
All above slab components can be rented for the duration of the project, and can be moved from floor to floor.
Inserts that are to be cast into the slab must be purchased.
•Greg Small P.E,. P.Eng., M.Eng. was retained to engineer the system.

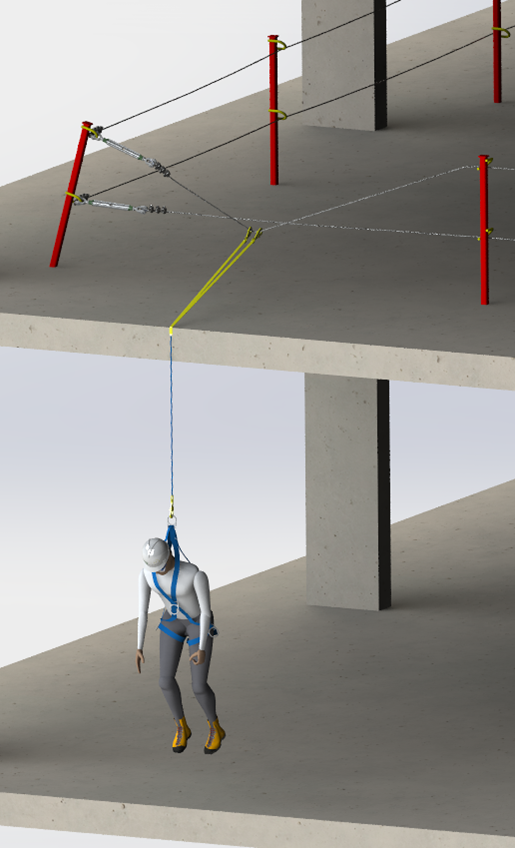

•When a fall occurs, end and corner posts are intentionally designed to bend - reducing cable forces below 6 kN and absorbing energy from the fall.
•End and Corner Sockets can resist more than 12 kN pull from the cable, to maintain a minimum Safety Factor of two, and to meet the requirements of CSA Z259.16, ANSI Z359.6, OSHA 1926.502, and other worldwide standards.
